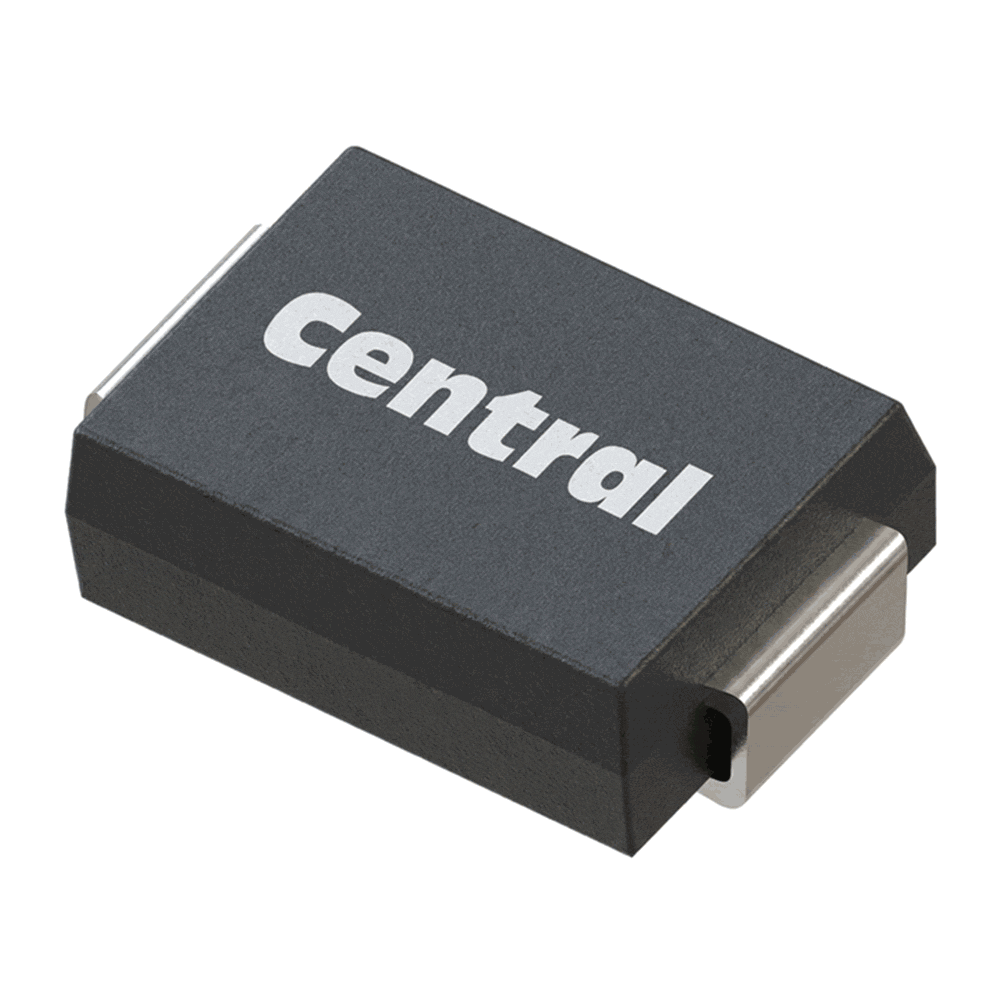

CMR3-08
3A,800V Surface mount Rectifier-General Purpose Single
Specifications
Average Forward Current
3 A
Case Type
SMC
Continuous Reverse Voltage
800 V
ECCN Code
EAR99
Forward Voltage (VF)
1.2 V
HTS Code
8541.10.0080
Junction Temperature (Tj)
-65 — 175 °C
Peak Forward Surge Current
200 A
Peak Repetitive Reverse Voltage
800 V
Reverse Voltage Leakage Current (IR)
250 µA
Reverse Voltage Leakage Current (IR)
5 µA
RMS Reverse Voltage
560 V
Storage Temperature (Tstg)
-65 — 175 °C
Thermal Resistance Junction-Lead
10 °C/W
