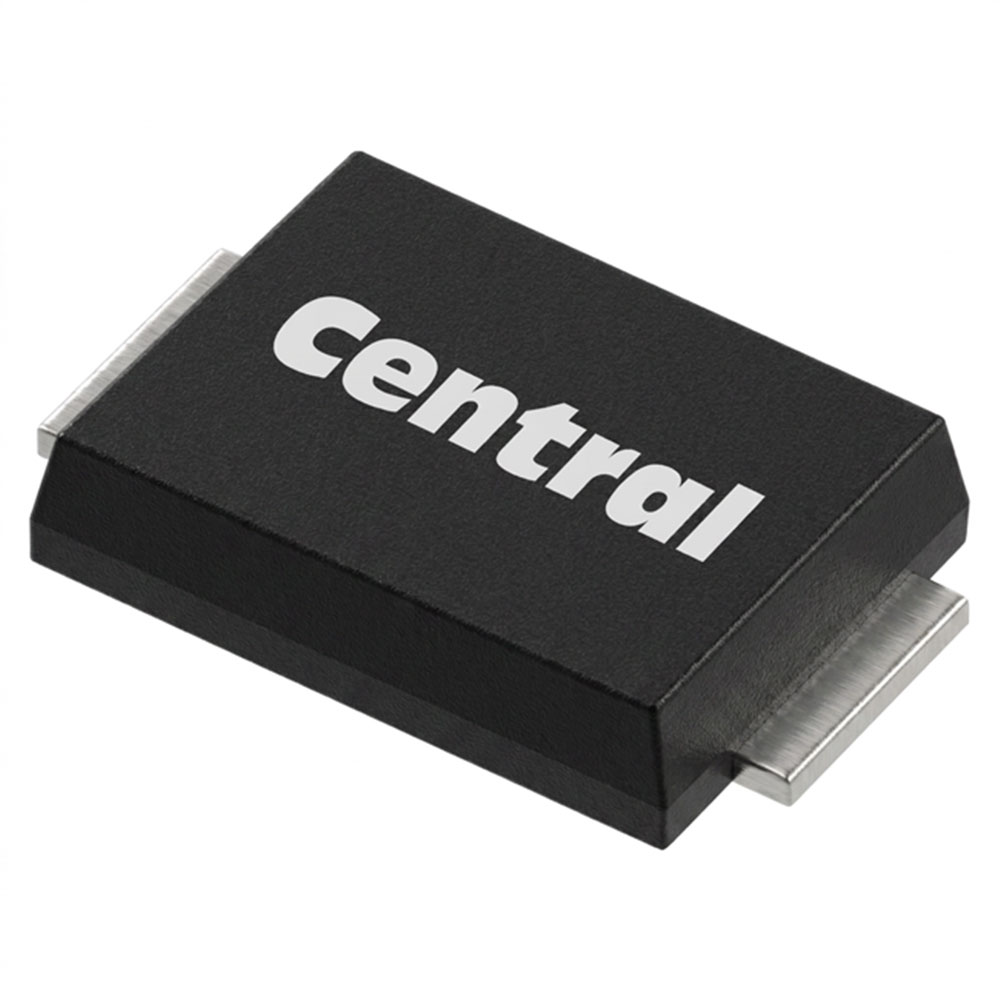

CMSH3-40FL
3A,40V Surface mount Rectifier-Schottky (>=1A) Single
Specifications
Average Forward Current
3 A
Case Type
SMBFL
Continuous Reverse Voltage
40 V
ECCN Code
EAR99
Forward Voltage (VF)
0.5 V
HTS Code
8541.10.0080
Junction Capacitance (CJ)
150 pF
Junction Temperature (Tj)
-65 — 150 °C
Peak Forward Surge Current
80 A
Peak Repetitive Reverse Voltage
40 V
Reverse Voltage Leakage Current (IR)
100 µA
RMS Reverse Voltage
28 V
Storage Temperature (Tstg)
-65 — 150 °C
Thermal Resistance Junction-Lead
15 °C/W
Product Options
| Part | Status | Description | Packaging Code | Packaging Qty | Termination | variant_ncnr |
|---|---|---|---|---|---|---|
| Active | 3A,40V Surface mount Rectifier-Schottky (>=1A) Single | Box | 800 | PBFREE | ||
| Special Order Item | 3A,40V Surface mount Rectifier-Schottky (>=1A) Single | Tape & Reel | 5,000 | TIN | No |
